Ultra Performance Flash Purification: puriFlash® 5.050
Ultra Performance Flash Purification: puriFlash® 5.050

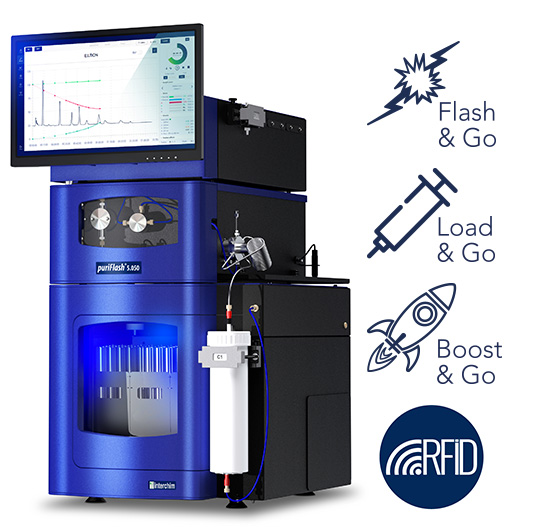

Non-contractual picture.
System delivered without pump door.
puriFlash® 5.050
Optimized for Ultra Performance Flash Purification
Flow rate
250 mL/min
Max. pressure
50 bar
Components
- Control unit
- Pump
- UV detector
- Fraction collector
- Solvent tray with drainage system
- Integrated column holder
- Integrated Dry-Load holder
Pump
- Flow rate range: 1 mL/min to 250 mL/min
- Max. operational flow rate: 250 mL/min
- Optimum flow rate for columns up to F0800 format
- Flow rate accuracy: +/- 2 % over 20 to 200 mL/min & 5 to 40 bar
- Flow rate repeatability: < 0.25
- Flow rate linearity: 0.98 < linearity < 1
- Pressure range: 0 to 50 bar
- Max. operational pressure: 50 bar
- Quaternary gradient valve
- Gradient tolerance step: < 3.5 %
- Air purge
- Washing discs
Injection
- Injection mode: liquid or solid
- ”Load & Go”: with automatic 6-ways valve which allows the use of staggered Dry-Load or a loop for an even more efficient injection
- RFID technology: automatic detection of the Dry-Load and the injection loop
- 2 mL stainless steel injection loop with RFID tag
Detection
- UV detector 200-400 nm
- UV detector 200-800 nm (included in the Pack-UVextended)
- ”DAD” technology
- Multi-wavelength and scan collection over a band of 200 nm (or 600 nm with the Pack-UVextended)
- Spectral visualization and confirmation of purity
- Flow cell pathway: 0.1 mm / 40 µL
- Integrated ELSD detector (included in the Pack-iELSD)
Column & holder compatibility
- Normal phase(NP)
Particle sizes: 10 µm, 15 µm, 25 μm, 30 μm, 40 μm , 50 μm - Reverse phase (RP)
Particle sizes: 15 µm, 30 μm , 50 μm - .
-
Format: all Flash columns up to F0800 (with optional integrated column support for F0800 columns) are compatible and can be used at the optimum flow rate; in addition, larger columns can be used with an external column support and below the optimum flow rate.Dry-Load columns up to size F0330 are compatible.
- .
- Integrated column holder
- Integrated Dry-Load holder
- .
- RFID technology: automatic detection of the columns
Fraction collector
- Capacity:
● 3 racks
● 132 test tubes (18 x 150 mm) - .
- Technology:
● Automatic cleaning of the fraction collector needle (to avoid cross-contamination with the previous purification)
● RFID: automatic detection of the racks installed in the fraction collector
Proposed racks
- Delivery includes a choice of 3 racks from the following list:
- ● Rack for test tubes:
13 x 73 mm | 13 x 100 mm | 16 x 150 mm
18 x 150 mm | 18 x 180 mm | 21 x 150 mm
25 x 150 mm | 28 x 150 mm | 29,5 x 200 mm - ● Rack for 250 mL Schott bottles
- .
- Available additional accessory:
- ● Rack for funnels (in option)
- ● Bottle tray (in option)
- .
- Position of the numbered tubes (to facilitate identification of tubes)
Software & control unit
- Control via InterSoft® X software included:
- ● Genius, Artificial Intelligence
● ”Flash & Go”™ technology: compatible with our smartphone app ”TLC to Flash & Prep”
● ”Boost & Go”™ technology - Windows 10
- Remote control
- Touchscreen 15″
- 8 USB ports
- 2 RJ45 ports
- Bluetooth/Wi-Fi key
System optimization
- Tubing after pump: 1.6 mm internal diameter
- Flow cell pathway: 0.1 mm / 40 µL
Safety
- System light status
- Solvent tray with drainage system
- Level sensor for solvents and waste
- Retention tray with leak detectors in the pump, Dry-Load holder, UV detector, valve, fraction collector & iELSD (included in the Pack-iELSD)
- “Fume Enclosure” technology (allows the use of the purification system without a hood)
Materials in contact with solvents
- ETFE
- PTFE
- 316 L Stainless steel
- Hastelloy
- PEEK
- Kalrez
- Sapphire
- Ruby
- Kel-F
- Zirconium
- PPS
- Nitronic 60
- Borosilicate glass
Accessories box
- Tubing with fitting & ferrules:
- ● Tygon tubing for solvent tray drainage
● Level sensor tubing (x5)
● Suction tubes (x4)
● Stainless steel adapter for injection (injection valve port 1)
● ETFE tubing 1/8″ injection valve port 2 to Dry-Load outlet
● ETFE tubing 1/8″ injection valve port 5 to Dry-Load inlet
● ETFE tubing 1/8″ injection valve port 3 to column C1 inlet - ● ETFE tubing 1/8″ column C1 outlet to detector
● ETFE tubing 1/8″ injection valve port 6 to waste
● ETFE tubing 1/8″ fraction collector outlet to waste
● ETFE tubing 1/8″ draining for fraction collector
● 2 mL Stainless steel loop with RFID tag - .
- Accessories ELSD (included in the Pack-iELSD):
- ● Reduction gear tubing 6 mm to tubing 4 mm
● White NYLON pneumatic tube length 3 m
● In-line filter 20 microns
● ETFE tubing from in-line filter to detector
● ETFE tubing from C1 colunm outlet to in-line filter - .
- Cables:
- ● RFID cable
● USB/USB cable – unit control to fraction collector
● HDMI cable – screen to unit control
● USB/MINI USB cable – screen to unit control
● LED’S cable – unit control to fraction collector
● Communication cable Sub-D9 male/female (1 m) – unit control to fraction collector
● Communication cable Sub-D9 male/female (0.5 m) – unit control to pump
● Communication cable Sub-D9 female/female (1 m) – unit control to UV detector
● Communication cable Sub-D9 female/female (1 m) – unit control to iELSD (included in the Pack-iELSD)
● Power cord – pump to fraction collector + unit control to fraction collector (x2)
● General power cable (model according to the country of destination) - .
- Solvent tray
-
Clips P (x2)Vis CHC M4x8 (x4)Grower M4 (x4)
- Stylus with its clip
- UV cell test
- Rear fastening (x2)
- Screws BHC 4×10 (x2)
- Grower M4 (x2)
UV trapdoor - ELSD trapdoor
- Racks (x3)
- Compliance report
Communication
- Communication cable Sub-D9 male/female (1 m) – unit control to fraction collector
- Communication cable Sub-D9 male/female (0.5 m) – unit control to pump
- Communication cable Sub-D9 female/female (1 m) – unit control to UV detector
- Communication cable Sub-D9 female/female (1 m) – unit control to iELSD (included in the Pack-iELSD)
Power supply
- 110 V or 220 V
Dimensions & Weight
- Weight : 49 kg
